Systems with basic profiles made of steel

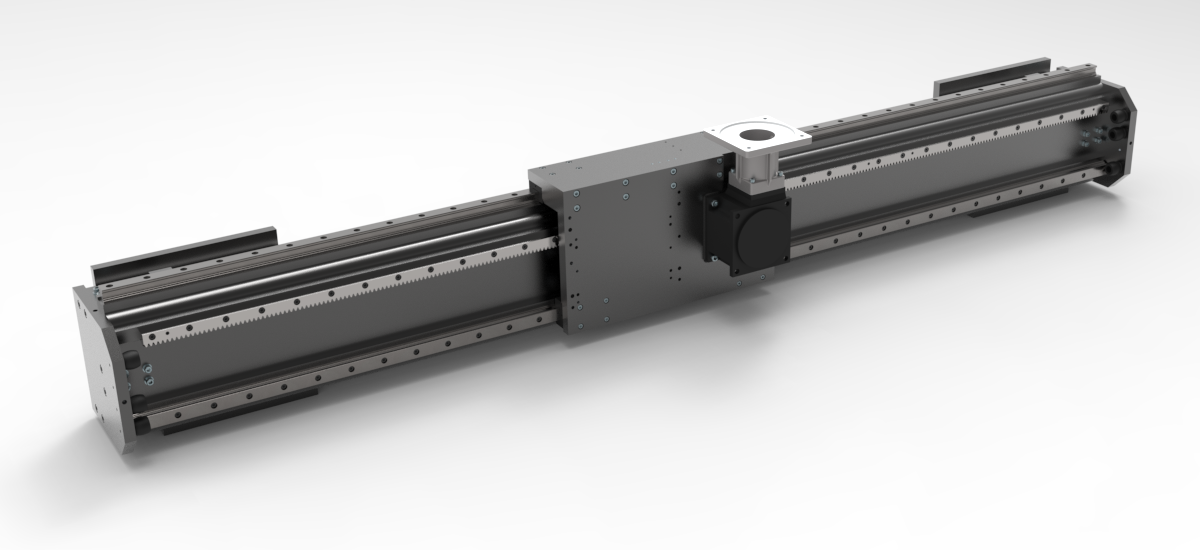

Portal linear units with base carrier system made of HSB-gamma^®

For several years, we have produced and supplied the portal linear units HSB-gamma^® 300 and HSB-gamma^® 400 as a special solution for stable applications.

The base carrier profiles are made of a steel profile tube that absorb the occurring forces and moments and pass them onto the frame below.

The drive and guide design is the same as for our tried-and-tested HSB-gamma® 90, HSB-gamma® 120, HSB-gamma® 160, HSB-gamma® 220 and HSB-gamma® 280 systems, only on a larger scale.

Please note:

The product data sheets are intended to provide you with initial information. Due to the complex system processing, it is important that you get in touch with our sales representatives to support the project.
